The general principle of it is to make the 50Hz/60Hz AC current into DC current.

And make the DC current into high frequency AC current basing on the high power electronic element IGBT, whose frequency could be 20KHZ, reducing voltage and rectification.

Character:
1.IGBT inverter technology, current controlling model, high quality, steady properties.
2.constant voltage output, high adaptability for electricity network
3.electronic inductor controlling, less splash, deep weld pool and good forming
4.hot start with slow wire feeding, welding with globule wiping off, high hot start success rates.
5.suitable for 0.8mm thickness welding material
6.small size, light weight, simple operation
7. Machine is with good performance cooling fan inside for higher working duty cycle and working steady
8. Machine is with wheel for all in one work station.

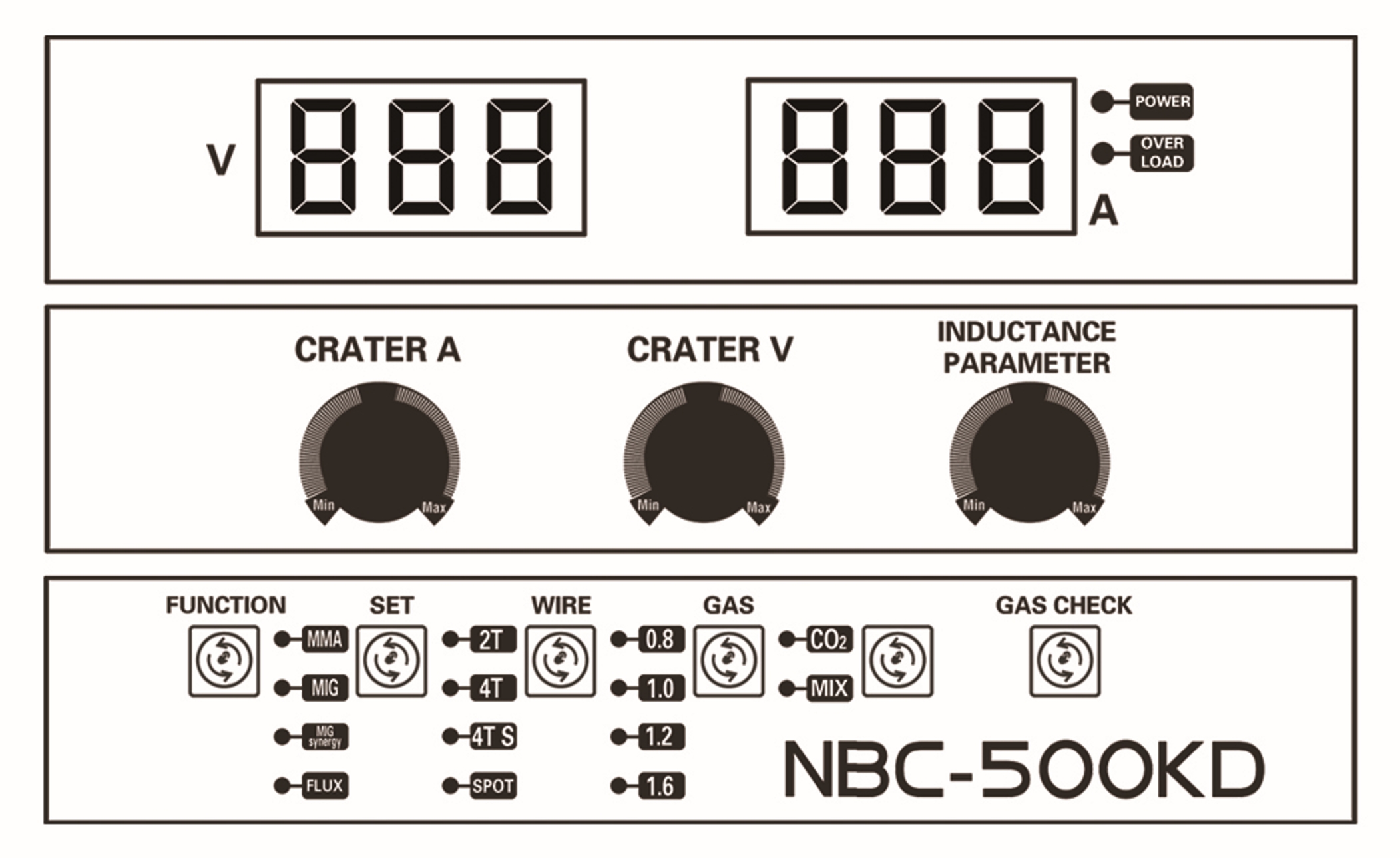

9. Digital control panel
10. Low weld splash weld feature

The efficiency of machine would be above 85%, and machine would be with energy conservation function

Machine function:
1. MMA, MIG/MAG function
2. welding current adjustable
3. welding voltage adjustable
4. MIG welding inductance adjustable
5. tubular wire weld function

wire plate weight: 15 - 20 kgs


Power supply: 3-380V+/-15%
No load voltage: 65V
Duty cycle: 60%
Max. working current: 250A/300A
Efficiency: 90%
Protection: IP21S
